Showing all 6 results

  • E2 variable frequency drive

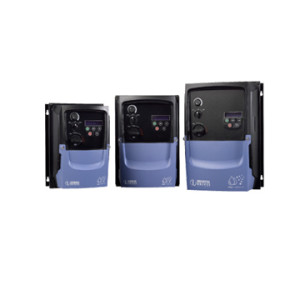

    Optidrive E2

    0 out of 5

    General Purpose AC Drive

    0.37 – 11kW  /  0.5 – 15HP
    110 – 480V Single & 3 Phase Input

    Dedicated to low power applications, E2 Variable Frequency Drive combines innovative technology, reliability, robustness and ease of use in a range of compact IP20 & IP66 enclosures.

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more
  • optidrive e2 single phase VFD

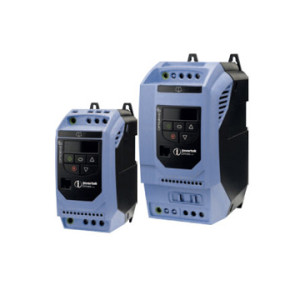

    Optidrive E2 Single Phase

    0 out of 5

    Single Phase General Purpose AC Drive

    0.37 – 1.1 kW  /  0.5 – 1.5 HP
    110 – 240V Single Phase Input

    Single Phase Input / Single Phase Output

    Designed to be cost effective and easy to use, the Optidrive E2 Single Phase is for use with PSC (permanent split capacitor) or shaded-pole single phase induction motors. Optidrive E2 Single Phase uses a revolutionary motor control strategy to achieve reliable intelligent starting of single phase motors.

    Optidrive E2 Single Phase has only 14 standard parameters to adjust in its basic form. The Optidrive’s legendary ease of use ensures quick and easy drive commissioning. For the more advanced user the extended parameter set gives access to powerful additional functionality.

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more
  • optidrive HVAC

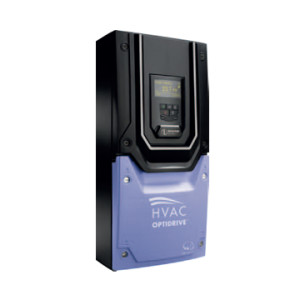

    Optidrive HVAC

    0 out of 5

    0.75 – 250kW / 1 – 350HP
    200 – 480V Single & 3 Phase Input

    • Dedicated HVAC drive for centrifugal fan and pump applications
    • Built-in EMC Filter as standard
    • IP55 Enclosed
    • Multi Language Plain Text OLED display
    • Energy optimisation maximises operating efficiency
    • BACnet and Modbus RTU provided as standard
    • Built-in Hours Run and kWh meters
    • Bi-directional Fire Mode overrides the drive control providing ventilation in emergencies
    • Built-in PID controller allows setpoint pressure or temperature to be accurately maintained
    • Advanced software application functions reduce commissioning time and provide optimum performance
    • Up to 32kHz output switching frequency for quiet motor operation
    • Built-in Sleep and Wake functions ensure operation only when required

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more
  • optidrive eco

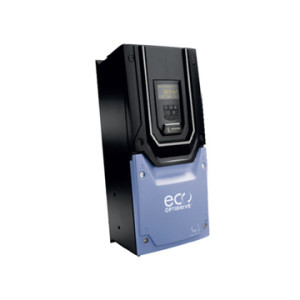

    Optidrive HVAC Eco

    0 out of 5

    The New Variable Frequency Drive for Fan & Pump Control

    0.75 – 45kW / 1 – 60HP
    380 – 480V 3 Phase Input

    • Eco Vector Motor Control
    • Energy Optimised Design
    • Internal EMC filter
    • Low noise operation

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more
  • Hot
    P2 variable frequency drive

    Optidrive P2

    0 out of 5

    High performance variable frequency drive for permanent magnet and standard induction motors
    0.75 – 250kW / 1 – 350HP
    200 – 600V Single & 3 Phase Input

    Optidrive P2 offers the perfect combination of high performance together with ease of use to allow even the most demanding applications to be tackled easily.

    • Low ambient operation (−10°C)
    • Dedicated Hoist Mode
    • CAN and Modbus RTU communication as standard
    • Simple PLC functionality
    • Built-in EMC filter
    • Industrial heavy duty rating for every model

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more
  • PCE-optidrive

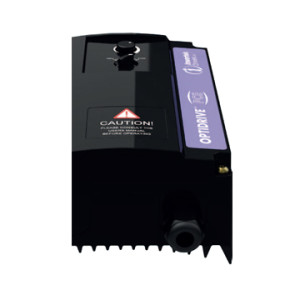

    Optidrive PCE

    0 out of 5

    Motor Mount Variable Speed Drive

    Up to 1.5kW / 2HP
    200 – 240V I Phase Input
    380 – 480V 3 Phase Input

    • High performance drive suitable for direct motor mounting
    • Sensorless vector control — up to 200% torque from zero speed
    • IP55 enclosure protects against dust and fluid ingress
    • Available with local Potentiometer and forward / reverse selection
    • Suitable for motor power ratings up to 1.5kW / 2HP
    • Supplied with universal adaptor plates

    pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



    Read more

Showing all 6 results
