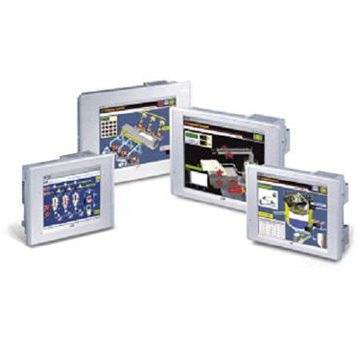

XGT-panel-HMI

HMI Series

XGT Panel

  • High and vivid distinction with 65,536 colors
  • Various vector symbols and high quality raster symbols
  • Support diverse file types including BMP, JPG, GIF and WMF etc.
  • Simple movie clip effects with GIF animation
  • 10/100 BASE-T Ethernet Interface
  • Convenient and easy screen editing
  • Strengthened data management (Logging, Recipe and Alarm)
  • Read function of a controller’s state information (Monitoring and maintenance)
  • Offline program simulation
  • Multi-lingual display up to 4 languages and easy switching
  • Tag function of the HMI S/W (Easy to change the adress of the graphic object)
  • USB host for the use of peripheral devices (Mouse, keyboard, printer, etc.)
  • Sufficient memory space for screen saving (10MB)
Categories: ,

Product Description

Downloads

pdf icon small XP10/panel Manual (7.12 MB)

pdf icon small XP Manual (1.81 MB)
