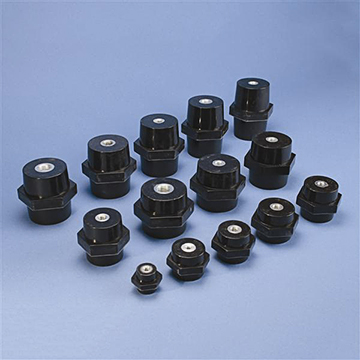

insulators erico

Insulators

  • Wide range of sizes from 1 inch to 3.5 inches
  • Cost effective
  • cULus recognized for strength and material
  • Working range of -40˚F to 266˚F
  • High resistance to leakage current

pdf icon smallSolutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Categories: , ,

Product Description

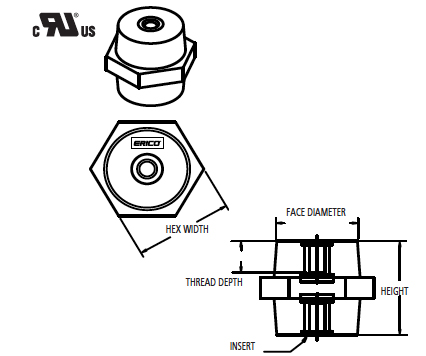

insulators detailsERICO offers a full range of ERIFLEX® low-voltage stand-off insulators from 1 inch to 3.5 inches with a total of 29 sizes available. The cost-effective insulators offer great stability of electrical and mechanical parameters and very high resistance to leakage current.

The insulators are manufactured from a halogen-free fi berglass-reinforced thermalset unsaturated polyester molded compound (BMC). Their electro-plated z inc inserts are threaded to ASME® standards. The insulators work in temperatures from -40°F to 266°F.

The stand-off insulators meet the requirements of UL® 94 VO for selfextinguishing materials and are UL Recognized to Standard 891, Supplement B, Dead-front Switchboards and Accessories, 600 volt, File No. E125470. The insulators are also UL recognized for Canada for material and strength. ERIFLEX insulators are the fi rst on the market to be in compliance with the CSA® standard.

Specifications
