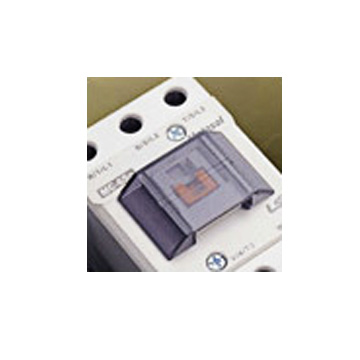

metaSol contactors

MetaSol Contactors

  • Ampere range 6 ~ 800A
  • Improved Arc Protection for sealed structure
  • Combination with overload relays – Setting range: 0.1 ~ 95A
  • Upgrade low current reliability at low voltage – DC 24 V 10A -> DC 17 V 5mA
  • Upgrade rated insulation voltage -6hv -> 8 kv over 40 AF
  • Upgrade impulse withstand voltage -690 -> 1000V over 40 AF

pdf icon smallSpecifications

MetaSol Catalogue

pdf icon smallMetasol Contactors and Overload Relays (Detailed) (24.92 MB)



Categories: ,

Product Description

productInfo-metaSol

Specifications
