Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

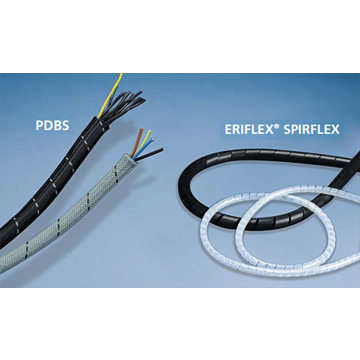

PDBS
Polyamide 6/6 Braided Sleeves
ERIFLEX® SPIRFLEX Spiral Sleeves
High-quality CPI stainless steel grounding and bonding braids can be installed in extremely corrosive environments, like offshore applications or coastal applications. The full range of CPI braids are ideal for applications using stainless steel pipe or tanks, like the food and beverage industry, building industry, transportation, oil and chemical industry.
ERICO offers 316L stainless steel braids and lugs, one of the highest resistant stainless steel options on the market. ERICO’s proprietary manufacturing process has been optimized to provide the best braiding, crimping, cutting and punching.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
The ideal ready-to-install flexible wire replacement solution. They connect directly to the front access terminals of an electrical device without the need for additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBS Flat Insulated Braided Conductors are available in cross section of 25 and 50 mm² (49.34 and 98.68 kcmil), lengths from 230 to 1,030 mm (9.06″ to 40.55″), and amperages ranging from 177 to 274 A.
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
MBJ Grounding and Bonding Braids are a reliable and convenient grounding solution for applications that require flexibility and durability. The tinned copper ground braids with massivated palms come ready to install without any additional cutting, stripping, crimping or punching and do not require the addition of tin or crimped lugs. The proprietary manufacturing process optimizes the electrical contact between each wire and helps eliminate moisture issues in the palms, preventing corrosion and lengthening the useful life of the braid.
