Product Description
- Material: Copper
- Finish: Tinned
- Wire Diameter: 0.15 mm
When used in parallel, the two shunts must be spaced with a minimum distance equal to the thickness of the shunt to allow air cooling.

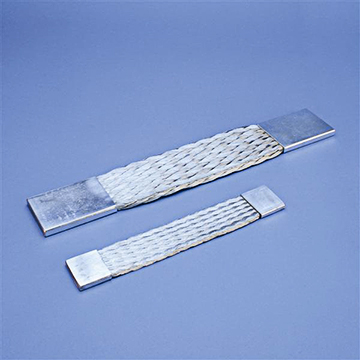

PBC Braided Power Shunts
- Ideal for transformer-busduct link
- Undrilled palms can be customize by power press to fit customer specific designs
- Extra flexible power connection and good resistance to vibration
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Related Products
-
PPS Presswelded Power Shunts
- Press welded laminations are welded to each other through direct current applied to pieces under pressure
- Press welding forms a solid palm with the properties of a plain bar
- Smaller cross section for same capacity
- Runs cooler than equal section
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Read more -
Neutral Bars
• Improved wiring capacity
• Direct electrical connection
• Strong mechanical assembly
• Transparent coverClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
Read more -
Hot
ERICO ® FLEXIBAR
NEW Generation Flexible Wire Replacement
ERICO® FLEXIBAR® is a flexible busbar wire replacement solution for low voltage applications available from 27 mm² up to 1200 mm² and 125 A to 2800 A.
- ERICO® FLEXIBAR® is formed with multiple layers of thin electrolytic copper insulated with a high-resistance, self-extinguishing PVC or silicone compound. The insulating sleeve is grooved on the inner surface, reducing the contact surface with the laminates to less than 20%, increasing flexibility and making installation easier.
- ERICO FLEXIBAR connections are made by punching and bolting directly through
the laminates or by clamping or welding. There are no lugs to purchase, helping to eliminate faulty connection problems and making installation simpler and faster. - Easily formed, ERICO FLEXIBAR improves assembly flexibility and aesthetics of panels
- Ideal alternative to large cable & rigid busbar
- Quality: 100% production dielectric tested
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Read more
