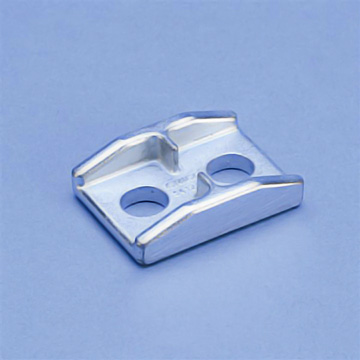

Product Description
- Material: Steel
- Finish: Electrogalvanized

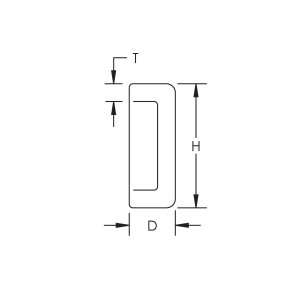

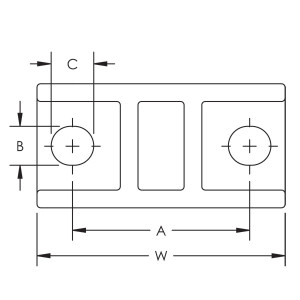

| Article Number | Description | Conductor Width | Depth D |
Height H |
Width W |
Thickness T |
A | Packaging Quantity | Unit Weight |
| 561200 | QCC 6/13 | 6.0 – 13.0 mm | 13 mm | 35 mm | 48 mm | 5 mm | 25 mm | 5 | 0.068 kg |
| 561210 | QCC 15.5/32 | 15.5 – 32.0 mm | 13 mm | 35 mm | 70 mm | 5 mm | 50 mm | 5 | 0.112 kg |
| 561220 | QCC 40/63 | 40.0 – 63.0 mm | 13 mm | 35 mm | 95 mm | 5 mm | 75 mm | 5 | 0.158 kg |
Use one clamp when ERICO® FLEXIBAR® thickness is less than 5 mm and two clamps when ERICO® FLEXIBAR® thickness is greater than 5 mm.
