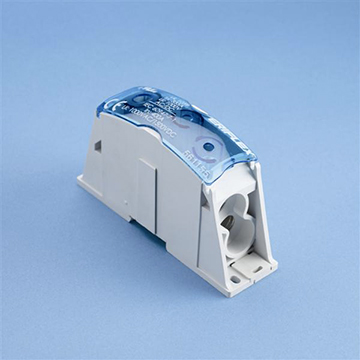

SB Series Power Blocks

  • Complete Power Blocks range, from 80A up to 630A IEC® – 85A up to 545A UL®
  • Offer multiple connection possibilites with One cable, Two cables or ERICO® FLEXIBAR® and IBSB/IBSBR Power Braid
  • Large cross section aluminum/ copper conductor connection
  • Offer time savings and reliability
  • High short-circuit current rating
    – 100kA SCCR (UL)
    – lpk up to 51kA (IEC)
  • High voltage values under IEC & UL certification (minimum of 1000V AC/DC)
  • Modular: individual modules are stackable for multiple applications

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
