SBLL

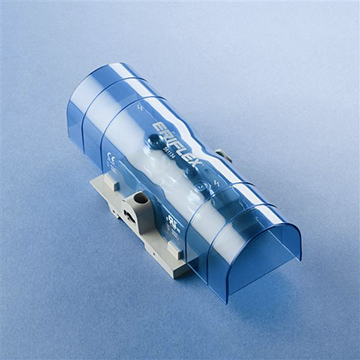

SBLL Power Terminals

  • Tinned Copper Bar
  • Visual inspection of wire and confirmation of connection
  • Quick connection with studs • Easy connection on ERICO® FLEXIBAR®
  • Adjustable transparent cover
  • Halogen Free
  • Self extinguishing: UL94 V-1
  • Easy fixing: clip on din rail with end cap or mount to panel with screws
  • Short Circuit Rated up to 100 KA – See UL file E198301
  • RoHS Compliant

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)
