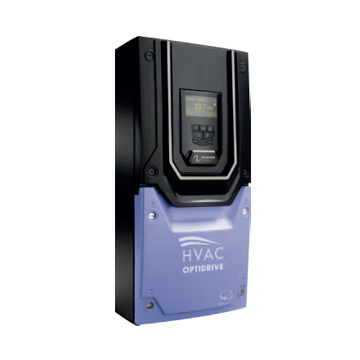

optidrive HVAC

Optidrive HVAC

0.75 – 250kW / 1 – 350HP
200 – 480V Single & 3 Phase Input

  • Dedicated HVAC drive for centrifugal fan and pump applications
  • Built-in EMC Filter as standard
  • IP55 Enclosed
  • Multi Language Plain Text OLED display
  • Energy optimisation maximises operating efficiency
  • BACnet and Modbus RTU provided as standard
  • Built-in Hours Run and kWh meters
  • Bi-directional Fire Mode overrides the drive control providing ventilation in emergencies
  • Built-in PID controller allows setpoint pressure or temperature to be accurately maintained
  • Advanced software application functions reduce commissioning time and provide optimum performance
  • Up to 32kHz output switching frequency for quiet motor operation
  • Built-in Sleep and Wake functions ensure operation only when required

pdf icon smallOptidrive Stock Drives Catalogue (10.5 MB)



Categories: ,

Product Description

hand-auto-HVACHand / Auto

Allows manual control to easily be selected in the event of an automatic control system failure or for simplified commissioning / system checks, or when a fast temporary override of the control system is required. Built‑in ‘Auto Control Selection’ allows return to automatic system control just as easily.

Drive Controlled Bypass

Optidrive HVAC can operate as a bypass controller when installed as part of a bypass circuit. Activation of Bypass mode can be determined intelligently by the Optidrive HVAC drive based on a command from the building management system. Additionally the drive can be set to automatically select bypass mode when entering into a trip condition ensuring minimal disruption to service.

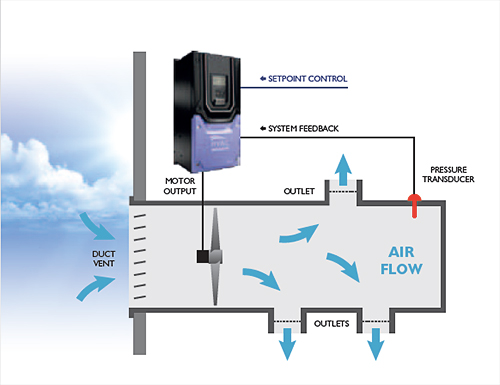

Controlling Your HVAC System

Optidrive HVAC has a PID controller built in that is fully integrated with both HVAC and energy efficient features and is packaged in a user friendly way to ensure ease of use and fast commissioning. Now in the majority of applications it has become possible to eliminate the need for external controllers.


HVAC-system
