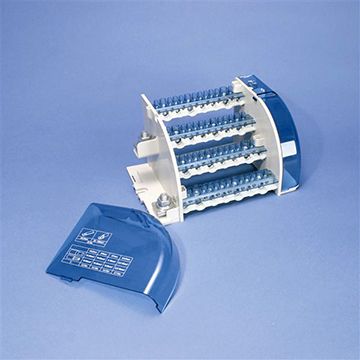

4-pole-TDL

TDL 250/400 A Four Pole Distribution Blocks

  • Easy connections: Input separated from outputs
  • End large terminals: Safe connections
  • Easy input connection : ERICO® FLEXIBAR® – IBS – Cable
  • Wiring from Both sides
  • Tinned Copper Bars : Copper or Aluminum Cables
  • Visual inspection of wire and confirmation of connection
  • New Design: solid bars provide reliability
  • Strong mechanical assembly
  • IP 10 hand safe
  • High % of Fill Ratio
  • Easy fixing: clip on din rail or mount to panel with screws
  • Halogen Free

pdf icon smallClick here for Distribution Blocks, Power Blocks and Power Terminals Catalogue (13.4 MB)



Categories: ,

Product Description

Part Number Description Packaging Unit Weight kg / lbs
563995 TDL 250 A 1 0.69/ 3.73

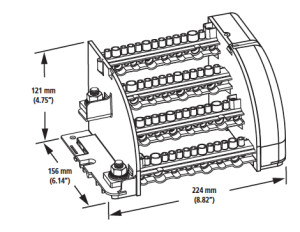

TDL-4-pole-dimensions



  • Icw KA rms 1s : 23
  • IPk KÂ : 51
  • Ui : 1000 VAC / 1500 VDC IEC
  • Vin : 600 V UL

Specifications
