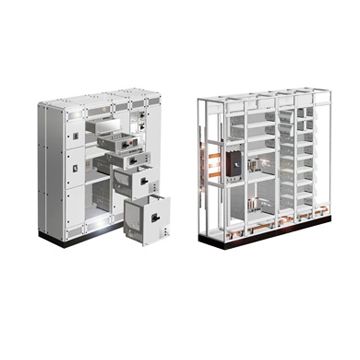

Techno Module Basic

Techno Module is a modern, patented modular construction system for building LV panel boards. TM is easy to assemble, easy to expand during and after construction, open to all breaker brands and will technically fulfill any requirement that you might have.

Categories: ,

Product Description

You can design the panel board the way that the engineer wants. Front access / rear access and bus bar in the rear, top or bottom.

Droppers can sit in the side or rear of the compartments. Outgoing cables can be arranged left, right, top, bottom, back. So no restrictions when it goes into a predetermined switch room.

Techno Module is supported by a free user friendly software, EPD which enables you to design a panel board within minutes. It automatically generates prices, bill of material, temperature rise calculation and drawings. The drawings generated in EPD can off course be exported to Auto-Cad.

Techno Module is likely the most tested system available ensuring the user a safe, top quality product. Elsteel products are manufactured under strict quality assurance -ISO 2001- certified and audited by DNV.

Features

Key Features:

  • Modular system based on 200mm grid
  • Smooth powder coated finish
  • Suitable for extreme climate conditions
  • High strength, low weight
  • Design Verified and type tested up to 7100A
  • IP55 is standard

It’s ideal for:

  • Main Switchboards
  • Distribution switchboards
  • Motor Control Centers (MCC)
  • Fixed or Fully Withdrawable
  • Power Factor Correction Centers
  • UPS Applications
