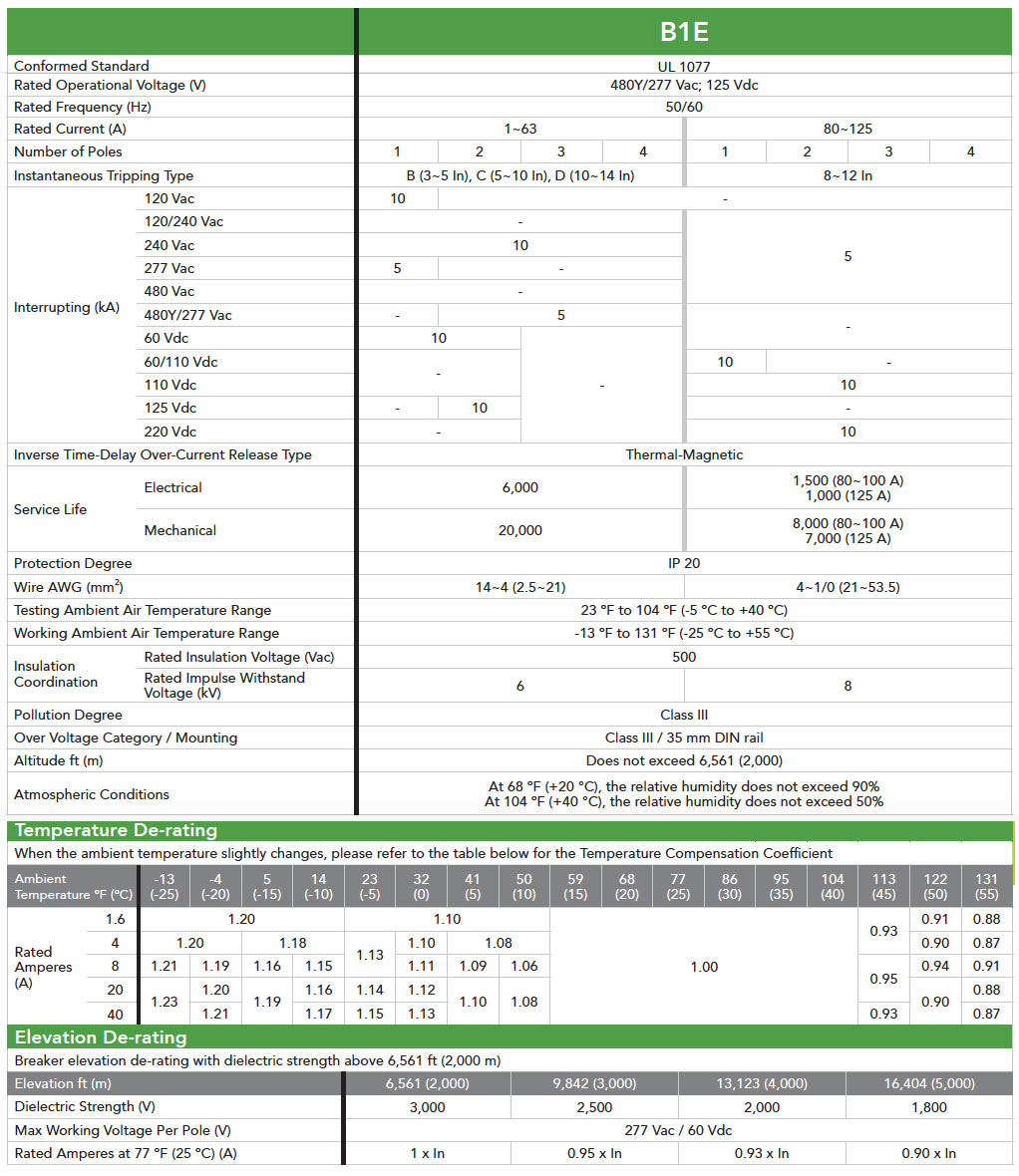

UL 1077 Specifications

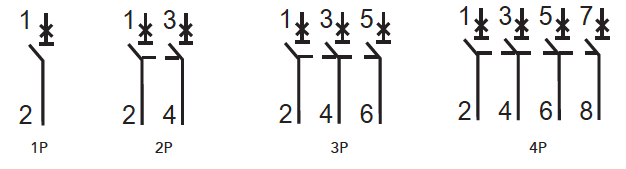

UL 1077 Wiring Diagram
UL 1077 Trip Curve

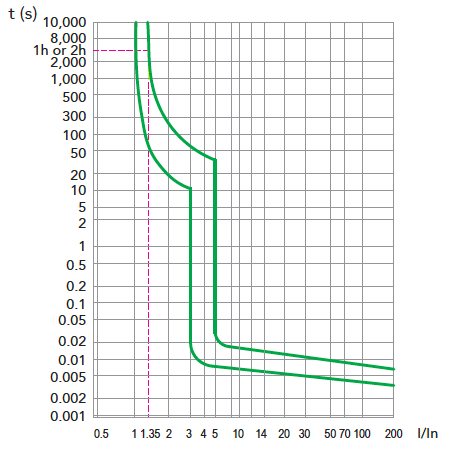

B Curve – 1~63 A
(3~5 In)

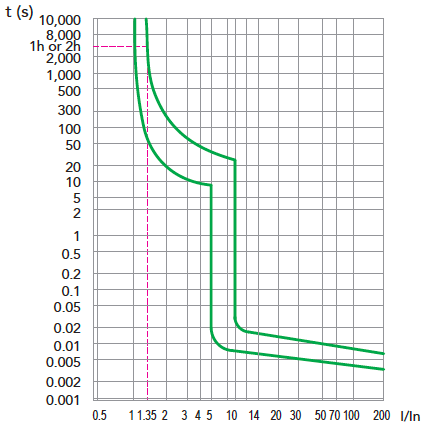

C Curve – 1~63 A
(5~10 In)

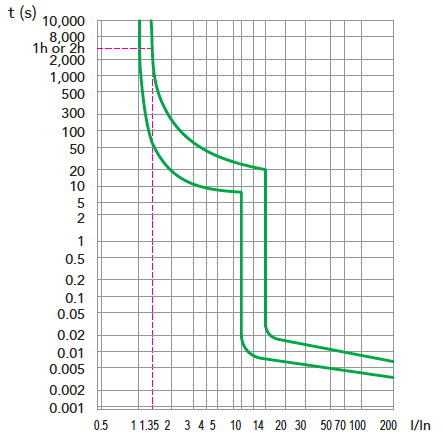

D Curve – 1~63 A
(10~14 In)

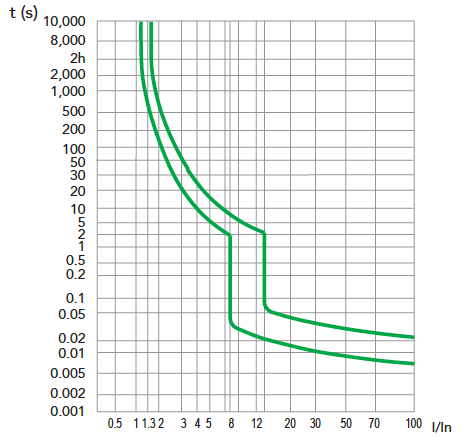

Curve – 80~125 A
(8~12 In)

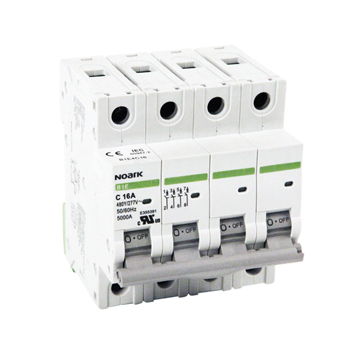

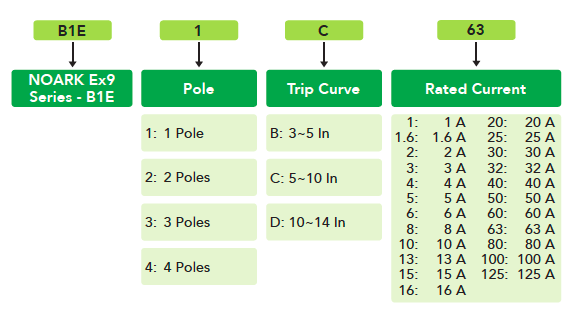

B1E Miniature Circuit Breaker UL 1077, 480Y/277 Vac, 125 Vdc
- Complete range of UL 1077 listed miniature circuit breakers up to a 125 A current rating
- Breakers mount on standard 35 mm DIN rail
- Standard ratings of 5 kA at 480Y/277 Vac
- Suitable for supplementary protection
- Thermal-magnetic over current protection – three levels of short-circuit protection, categorized by B, C and D curves
- Trip-free design – breaker cannot be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- Fulfill UL 1077, IEC 60947-2 standard
- Field-installable shunt trip and auxiliary switch subsequent mounting
- Module width of only 0.71 in (18 mm) per pole
- Contact position indicator (red/green)
- Possibility for locking the toggle in ON or OFF position
Specifications
