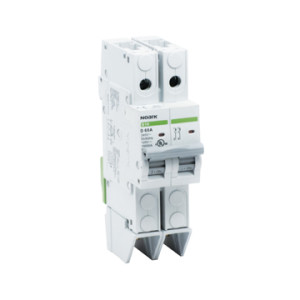

B1NQ Miniature Circuit Breaker UL 489, 120/240 Vac, 60 Vdc

0 out of 5
- Complete range of UL 489 and UL 489A listed miniature circuit breakers up to a 63 A current rating
- Breakers mount on standard 35 mm DIN rail
- Standard ratings of 10 kA at 480Y/277 Vac and 10 kA at 125 Vdc
- Suitable for branch circuit device protection
- Trip-free design — breaker cannot be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- For use in applications for which UL 1077 or CSA C22.2 No.235 are also allowed
- Field installable shunt trip and auxiliary switch subsequent mounting
- Available with provisions for ring tongue terminals
- Module width of only 0.71 in (18 mm) per pole
- Contact position indicator (red/green)
- Possibility for locking the toggle in ON or OFF position
DIN Rail Miniature Circuit Breakers Catalogue (11.6 MB)
Read more
BC Ribbed-Steel Busbar Clamp

0 out of 5
- Connects two copper busbars together or ERICO® FLEXIBAR® to copper busbar
- Two ribbed plates complete with screws
- Allows for excellent electrical contact
- Installs quickly and easily
- Ideal for on site modifications
- RoHS compliant
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
BJ Round Braid with Crimped Lugs

0 out of 5
A complete range of ground flexible connections from 6 to 100 mm2 section and from 100 to 500 mm length with integral palm :
- Ready to use out of the box, saving installation time and labor
- Recommended by the EMC directives
- Allows for bending very close to the contact area
- Good resistance to vibration and fatigue
- Integral palm, without tin or crimped lugs for superior electrical contact and tensile strength resistance
- Material savings: No lugs or terminals
- RoHS compliant
Click here for Erico Flexible Conductors Catalogue (14.2 MB)
Read more
BMS Bimetal Plate

0 out of 5
- For high performance contact between aluminum busbars and copper busbars
- 70% aluminum – 30% copper
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
Brake Resistors

0 out of 5

OPTIBRAKE
Dynamic Braking Resistors

Optibrake dynamic braking resistors are designed specifically for the Optidrive range. For use with high inertia loads which need to be stopped rapidly. Optibrake dynamic braking resistors assist the Optidrive in managing the electrical energy returned from the motor during braking by converting it to heat energy.

Optidrive Stock Drives Catalogue (10.5 MB)

Read more
Bus Bar

0 out of 5

UL 1077 Accessory

Read more
Busbars

0 out of 5

A series of type tested bus bar holders made out of extremely strong and self extinguishing material – The bus bars do not rely on bolts but slide in their holders offering minimum resistance during expansion or contraction of the copper

Read more
Cabling Sleeves : ERIFLEX ZIPFLEX, FGBS & SBS

0 out of 5
- ERIFLEX® ZIPFLEX: Easy screening using ERIFLEX® specific tool
- Glass fiber & isolating silicone sleeves: resistant to high temperature
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
Cabling Sleeves : PDBS & ERIFLEX® SPIRFLEX

0 out of 5
- Expandable cabling sleeves for many applications
- Wiring mechanical protection aesthetic
- Packed in easy dispense boxes
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
Clamping Torque Calculation

0 out of 5

With a class coated bichromated bolt (SAE Grade 5), using “Belleville and Flat” washers tightened with a torque wrench, without lubrication.

Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)

Read more
Compact and Adjustable Busbar Supports (CABS)

0 out of 5
- Universal fi xing support
- Easy to install
- Adjustable distance between each phase (12.5 mm pitch)
- Standard or customised support
- Cost-effective
- For all busbar types and ERIFLEX® ERILINK busducts
- Halogen Free
- Working temperature:
  -40°C up to 130°C
- Self extinguishing UL® 94 VO
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
Compact and Reinforced Busbar Supports

0 out of 5
- Minimum space requirement
- Easy and quick assembly
- Fits within 400 mm depth panelboard
- Provision for direct fixing of a screen
- Halogen free
- Working temperature:
  -40°C up to 130°C
- Self extinguishing UL® 94 VO
Solutions for Electrical Power and Ground Connections Catalogue (6,6 MB)
Read more
